Container spaces for skips
The mobile, environmentally friendly roof for the safe outdoor storage of hazardous materials in skips.

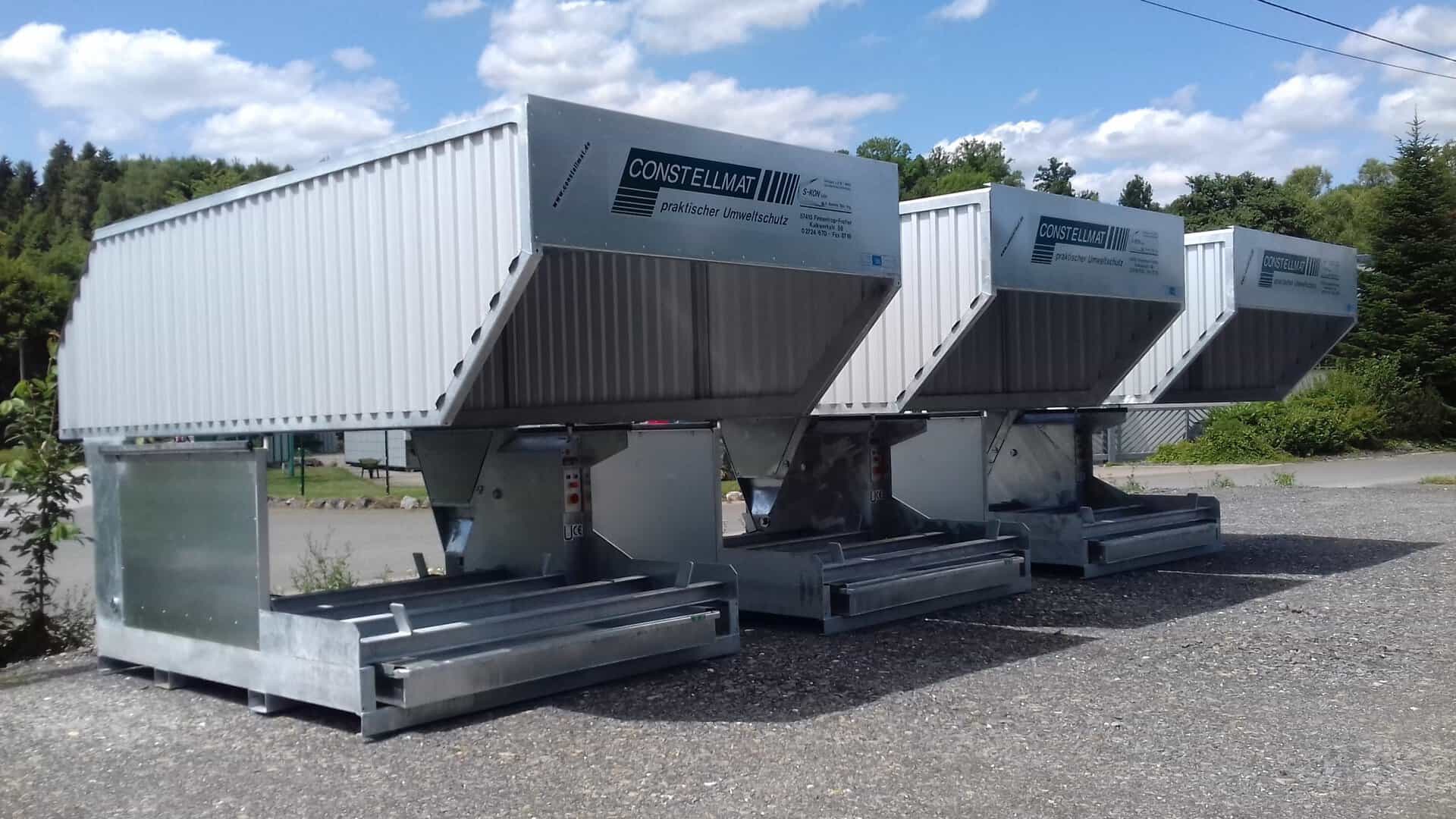

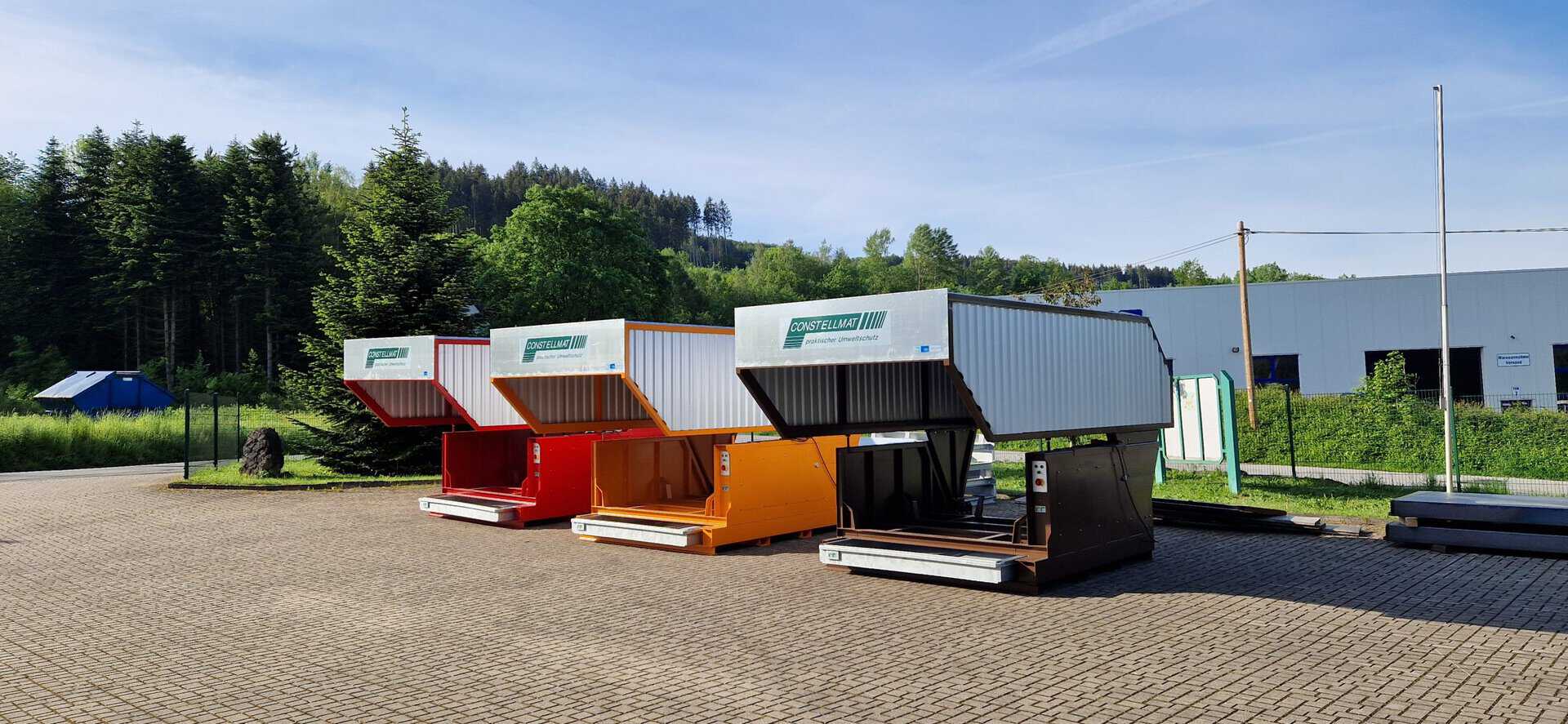

NCL series

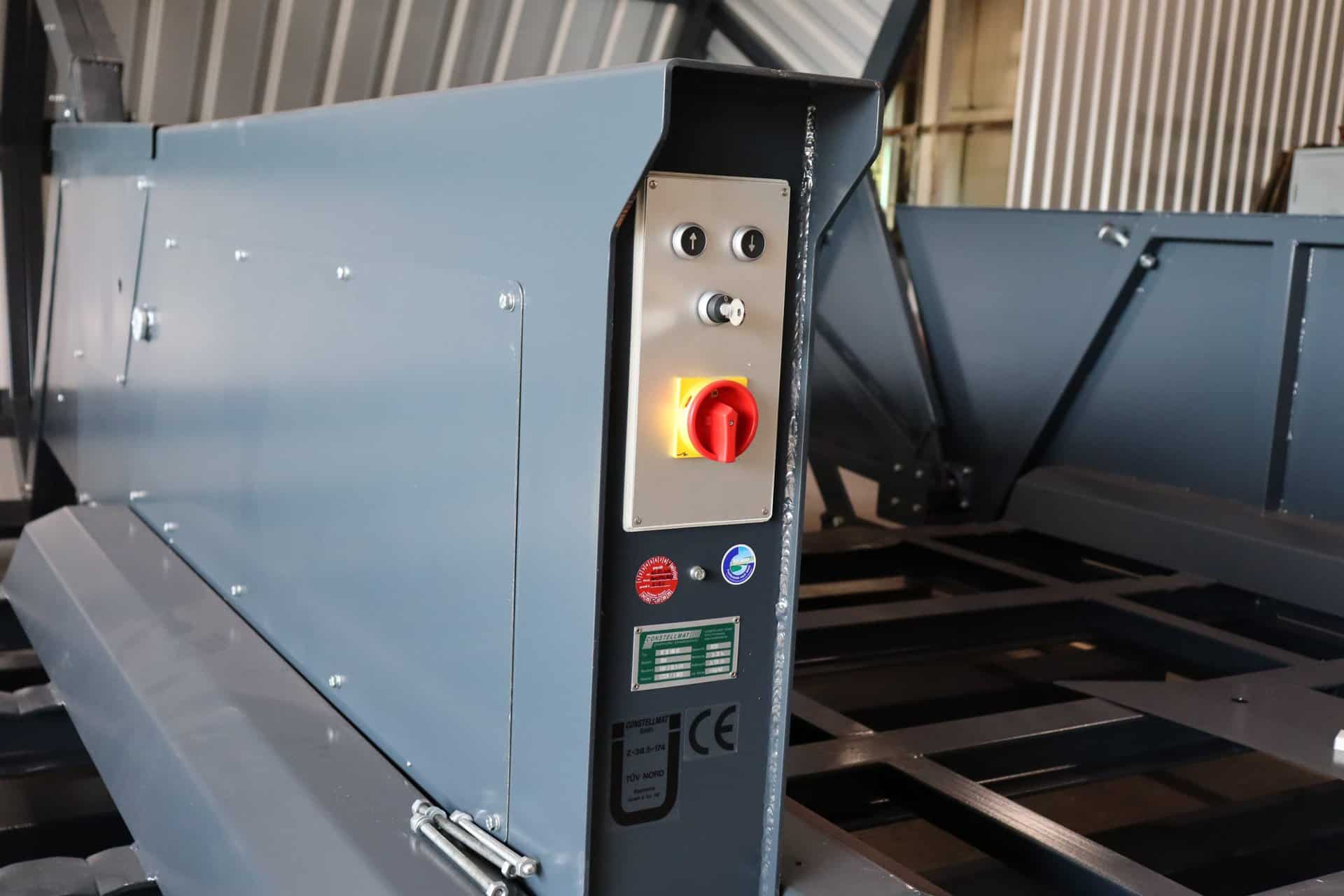

The CONSTELLMAT container storage area type NCL 100 HS offers a mobile container roofing with an uncontaminated collection tray system and is ideal for the safe and environmentally friendly outdoor storage of contaminant-adhering materials in skip containers, such as chips, sludge and paint.
This storage space reliably protects the soil from any penetration of pollutants. The double slide-in tray system covers the entire container base area, thus ensuring complete shielding.
Pivoting roof for easy loading
High torsional rigidity
WHG and AwSV compliant
| Type | Dimensions | Volume | Capacity | Weight | Load capacity |
|---|---|---|---|---|---|
| NCL 100 HS | 4.8 x 2.5 x 2.70 m | 930 l | up to 12 m³ | 2000 kg | 25 t |

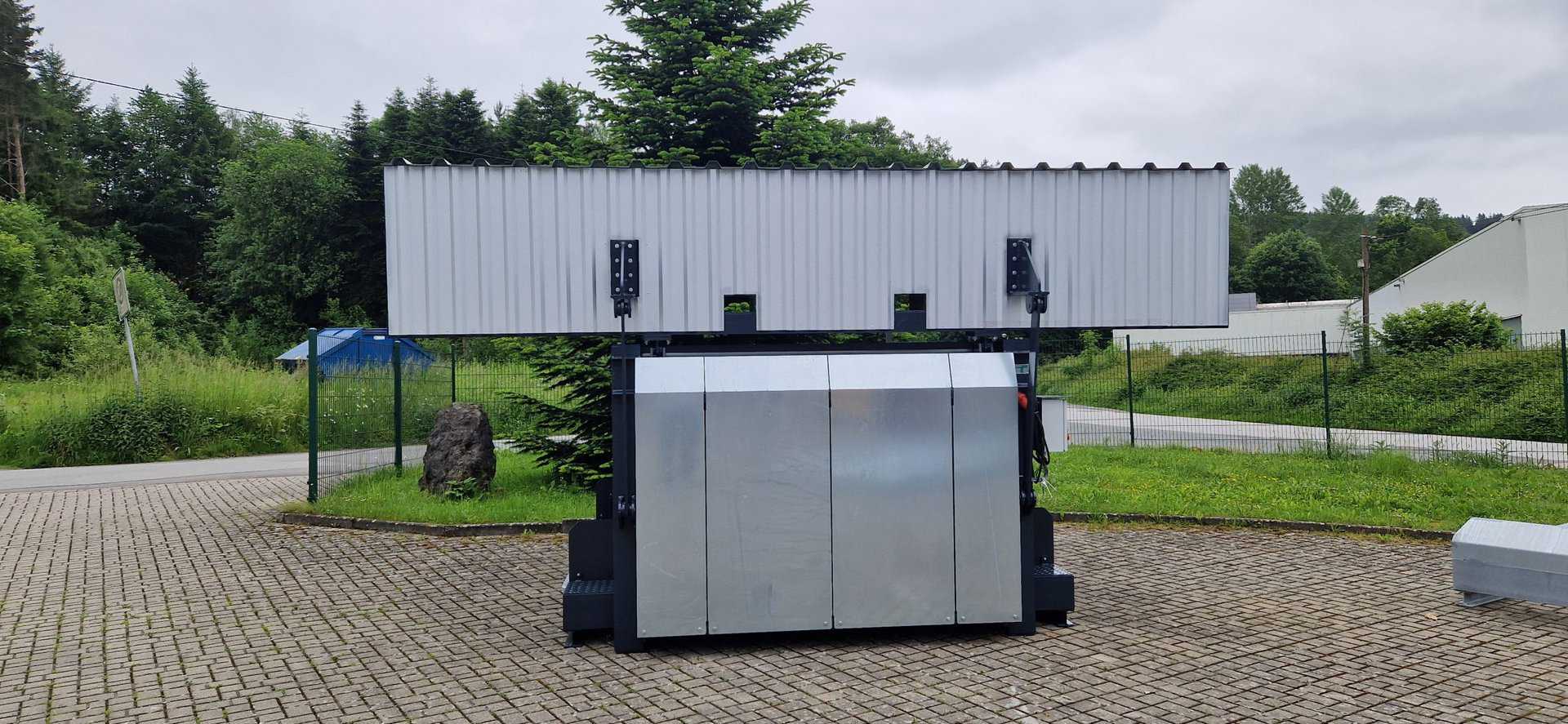

NCQ series

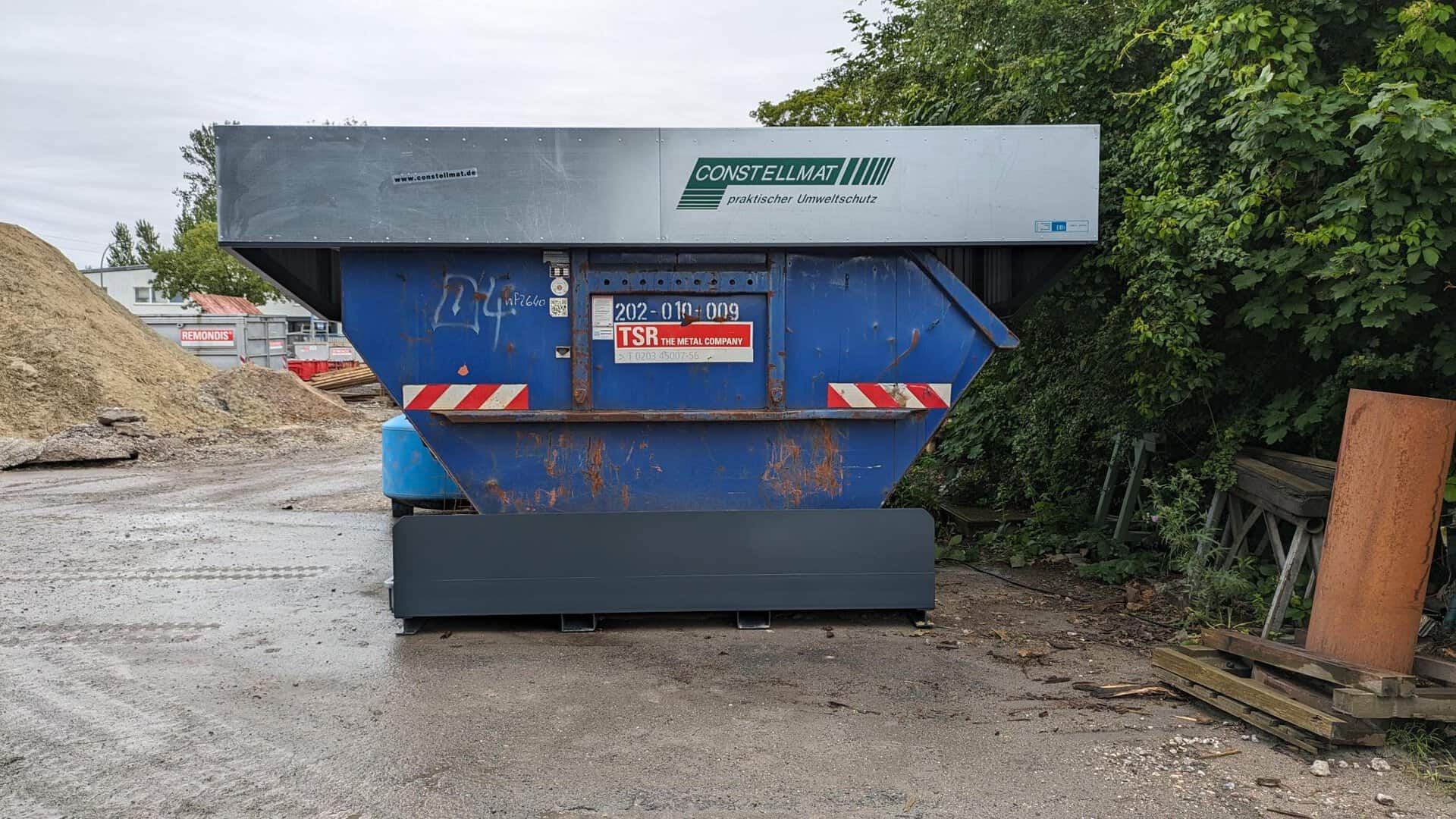

The NCQ 100 HS container storage bins are suitable for the environmentally safe and legally compliant outdoor storage of all types of pollutant-adhering materials in skip containers (e.g. chips, emulsions, sludge, paints, etc.).
This storage space safely and reliably prevents the penetration of all pollutants into the ground thanks to the double slide-in tray system, which encloses the entire container base area.
Longitudinally guided roof opening
Robust and durable construction
Flexible installation
| Type | Dimensions | Volume | Capacity | Weight | Load capacity |
|---|---|---|---|---|---|
| NCQ 100 HS | 4.94 x 2.99 x 2.71 m | 930 l | up to 12 m³ | 2300 kg | 25 t |
NC 2D series

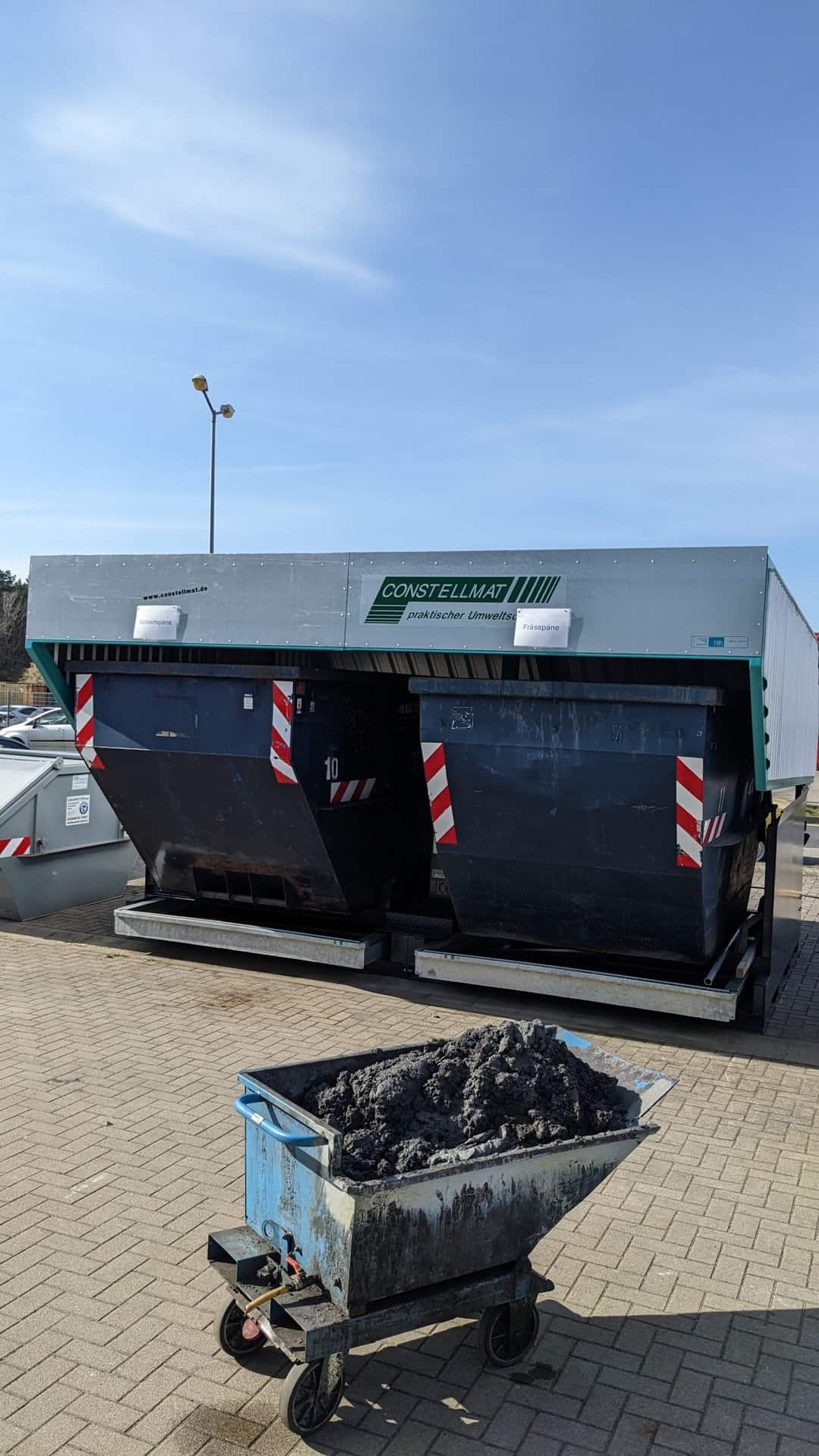

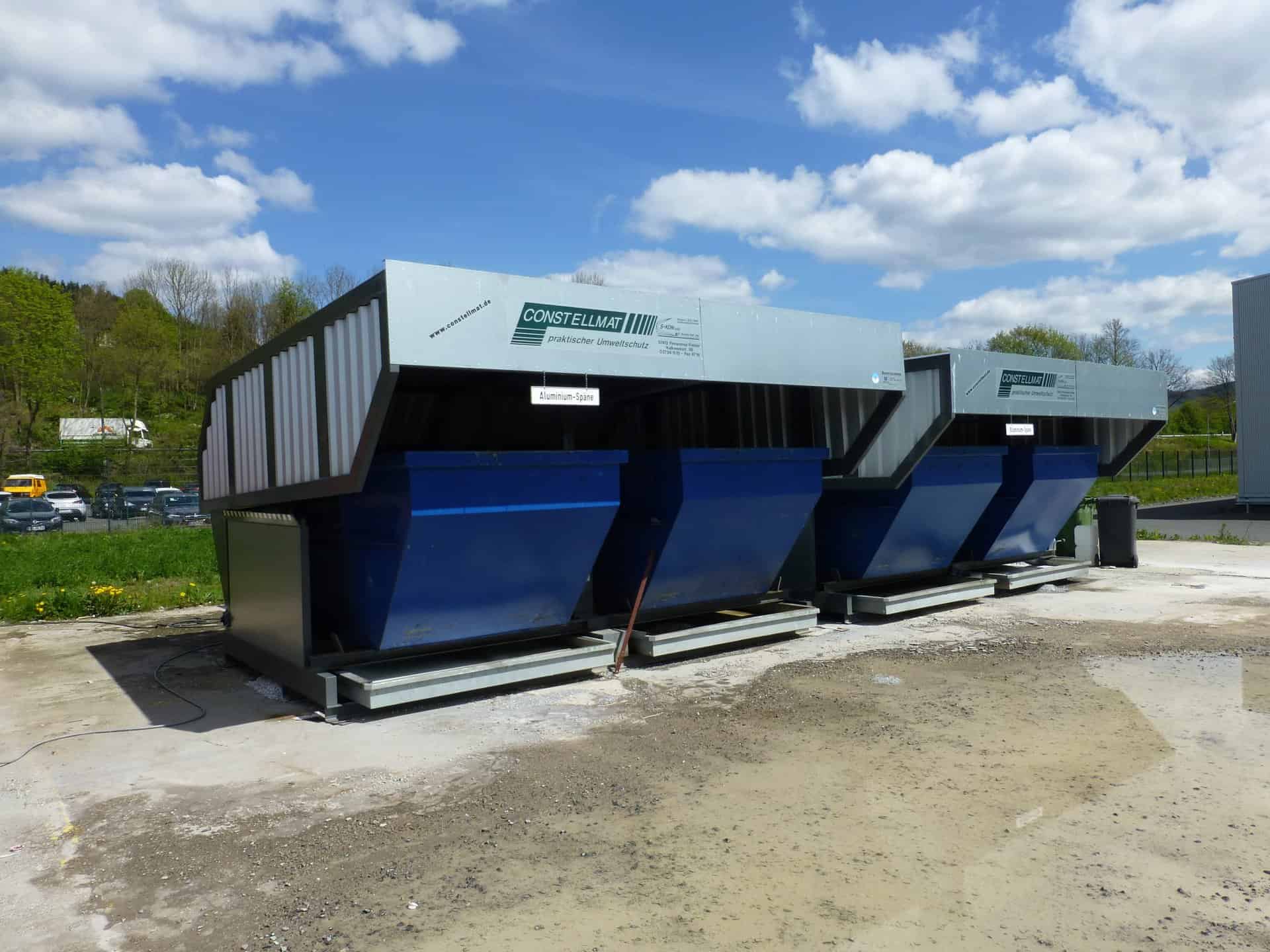

The CONSTELLMAT NC 2D 100 HS container parking space is suitable for holding two skip containers with a volume of up to 12 m³ each next to each other. The main advantages and features of our storage spaces, such as the one-piece hinged canopy roof or the double unloaded slide-in tray system, are always part of the overall design. Our container storage space system is practice-oriented and impresses with its durability, robustness and resistance to disruption!
Double drip trays
Pivoting roof for easy handling
High safety standards
| Type | Dimensions | Volume | Capacity | Weight | Load capacity |
|---|---|---|---|---|---|
| NC 2D 100 HS | 4.8 x 4.8 x 2.75 m | 2×930 l | 2x up to 12 m³ | 3200 kg | 2×25 t |

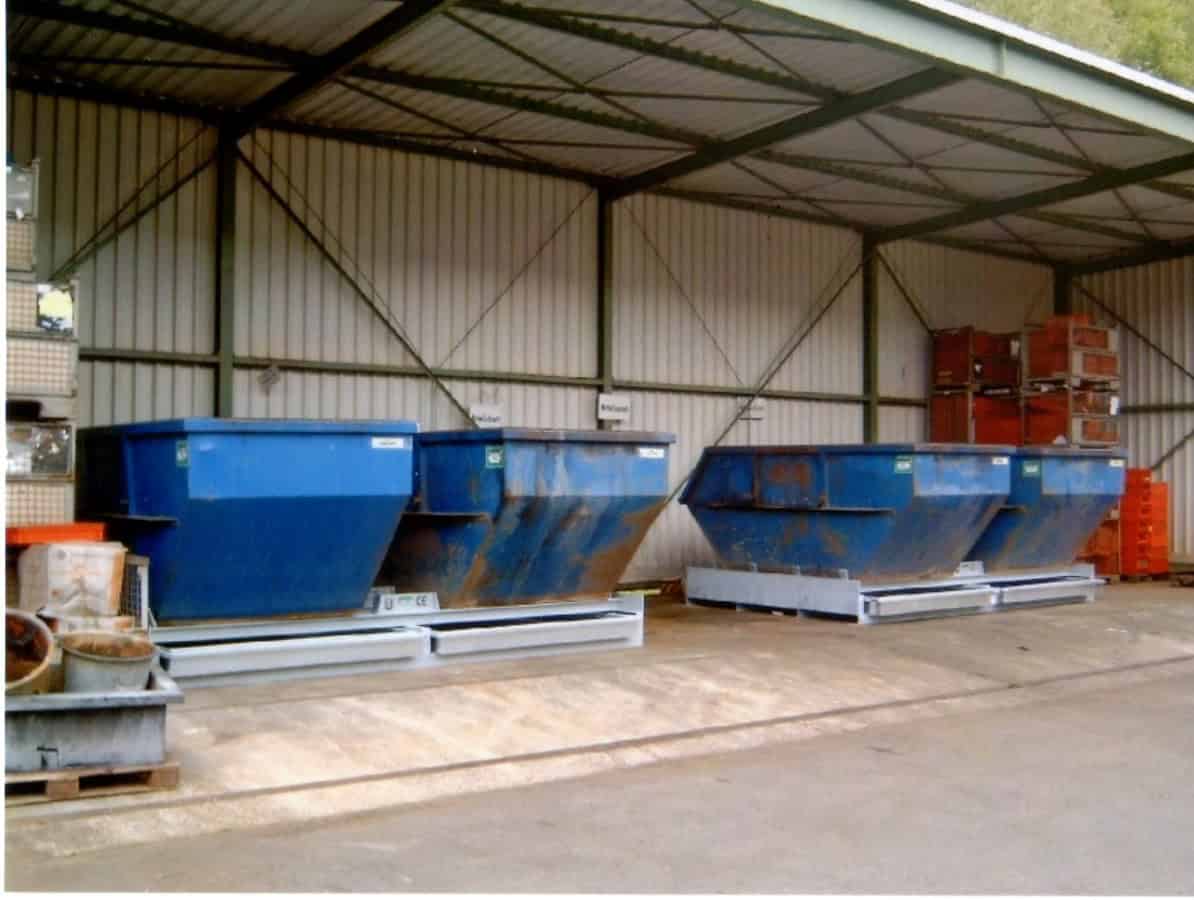

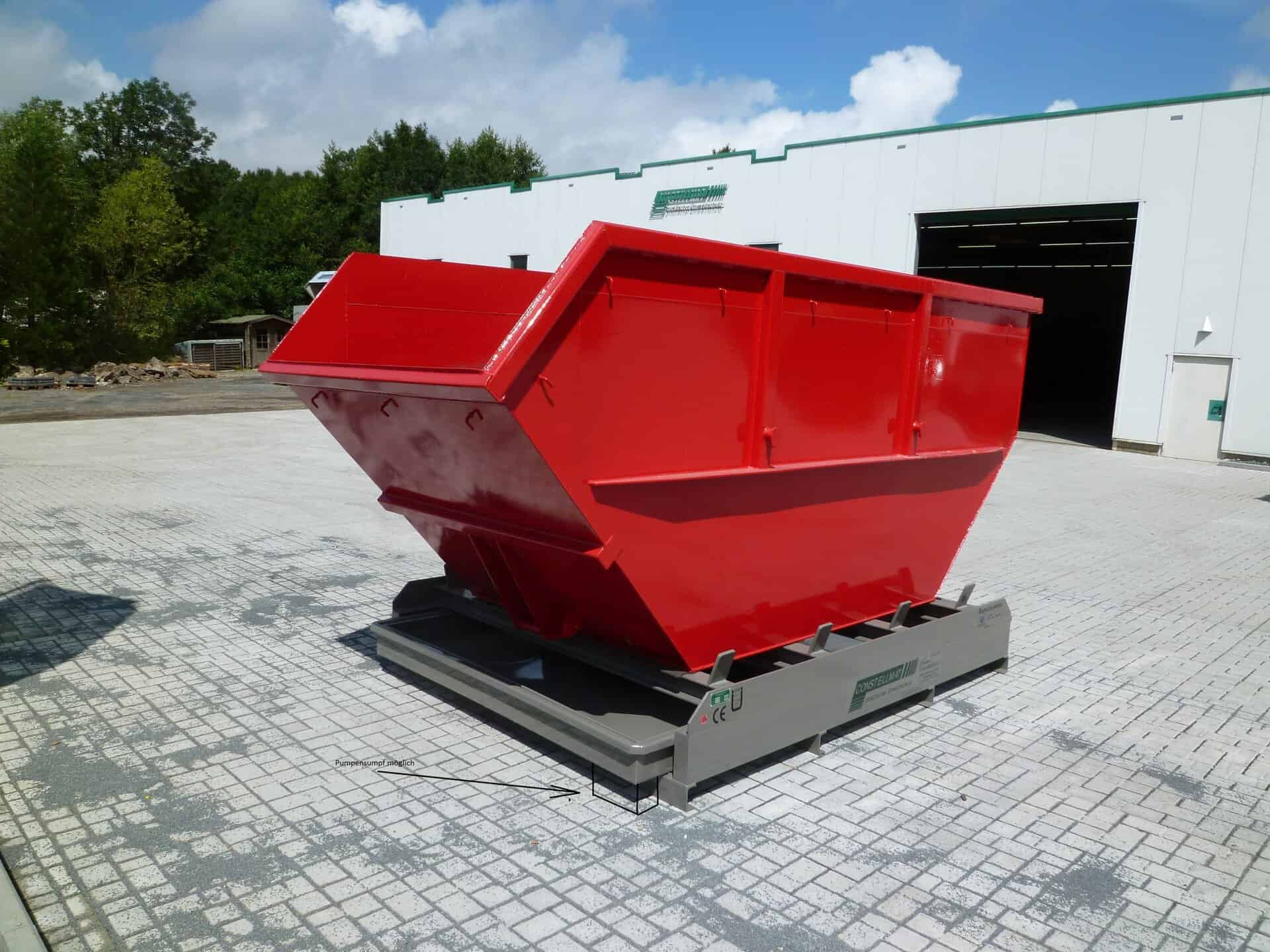

NW series

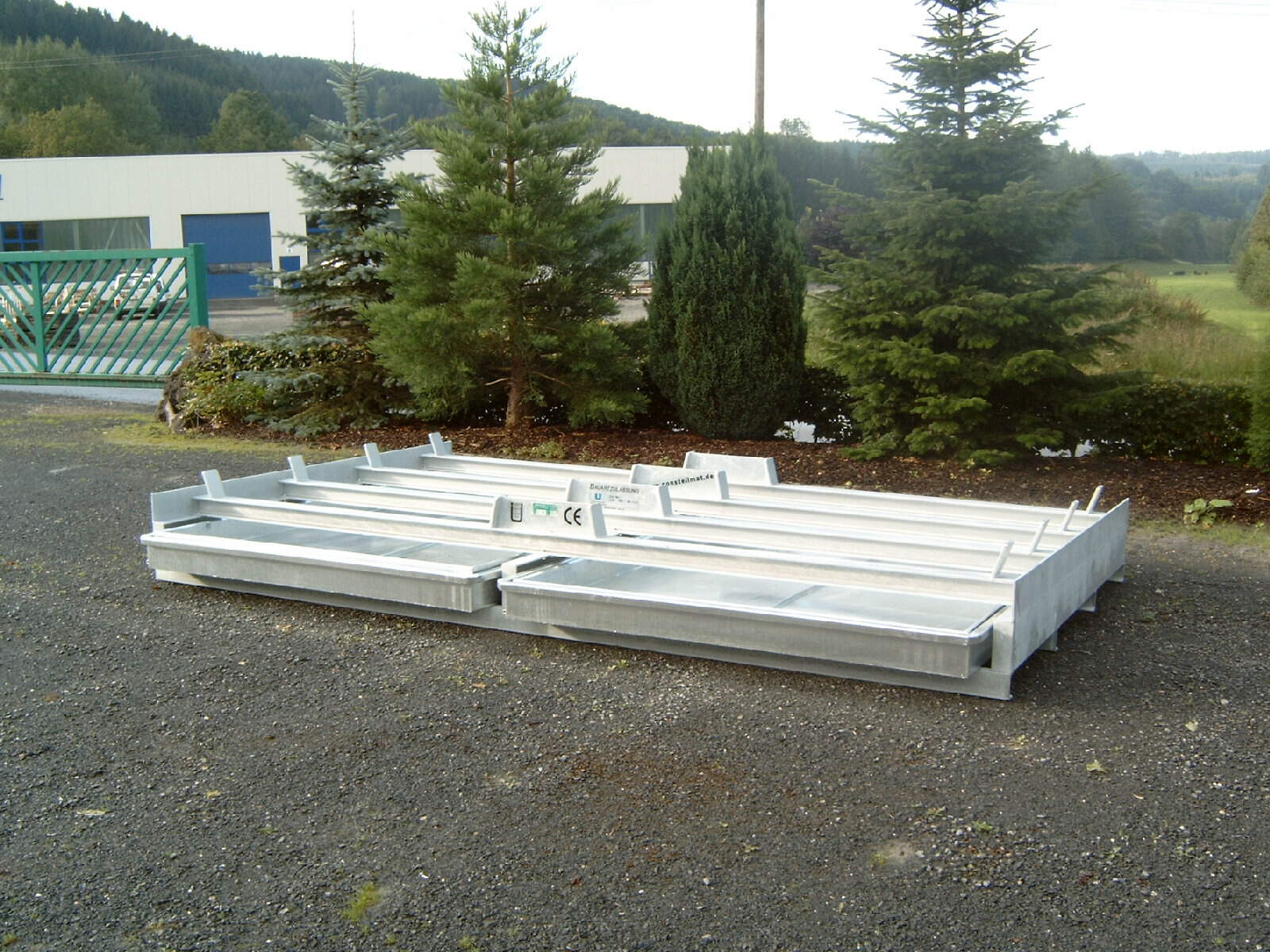

The NW 70-140 and DNW 70-140 container storage areas are ideal for the canopy and indoor storage of container skips. Pollutants and materials of all kinds adhering to containers or skips can be safely collected here. The storage space ensures reliable prevention of the penetration of all pollutants into the soil, which complies with the requirements of the German Water Resources Act (WHG) and the AwSV.
Robust construction
Double drip trays
Easy handling
| Type | Dimensions | Volume | Capacity | Weight | Load capacity |
|---|---|---|---|---|---|
| NW 70-140 | 3.00 x 2.40 x 0.35 m | 930 l | up to 16 m³ | 860 kg | 35 t |
| DNW 70-140 | 3.00 x 4.40 x 0.35 m | 2 x 930 l | up to 2 x 16 m³ | 1660 kg | 35 t |

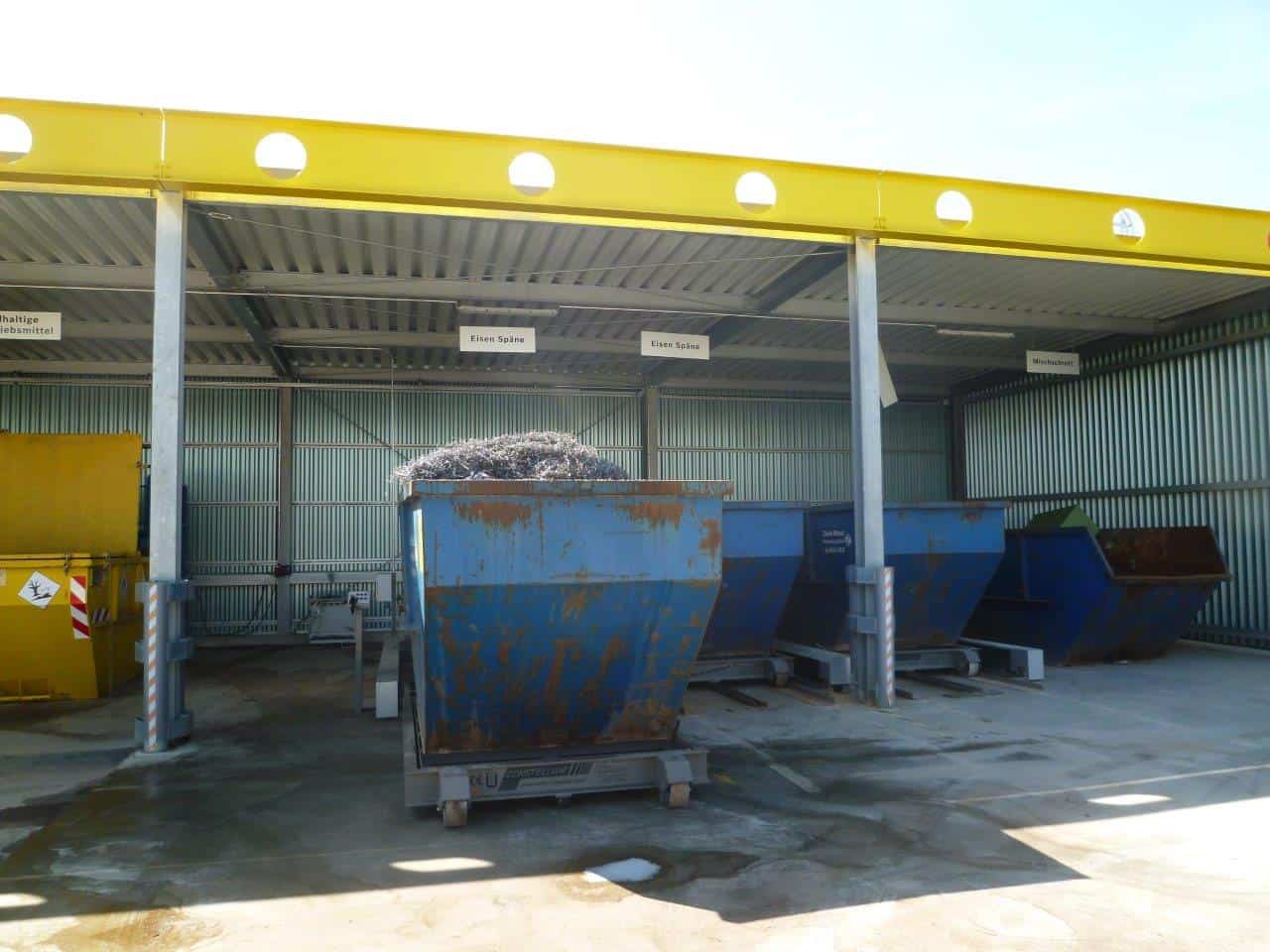

NWF series

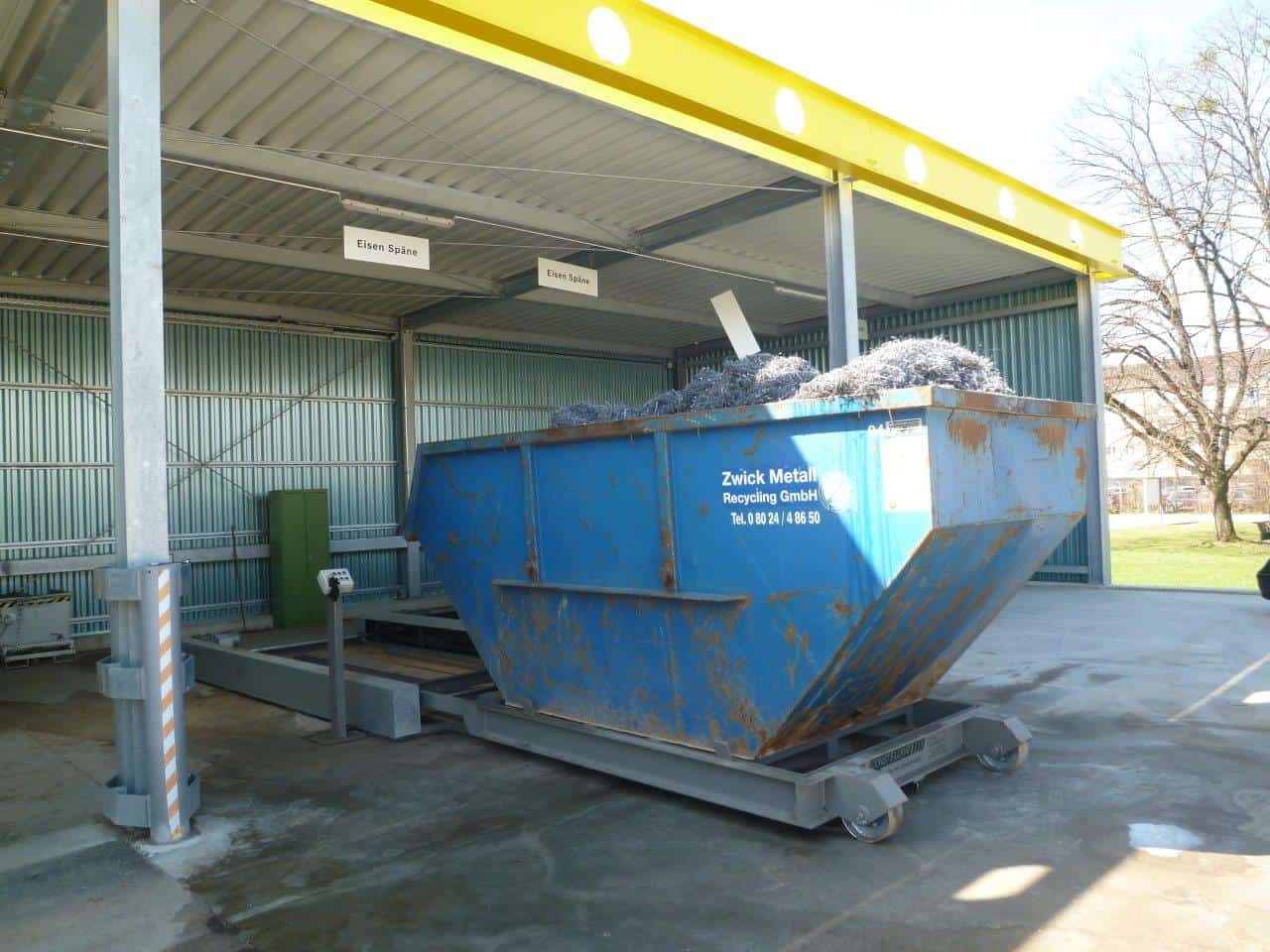

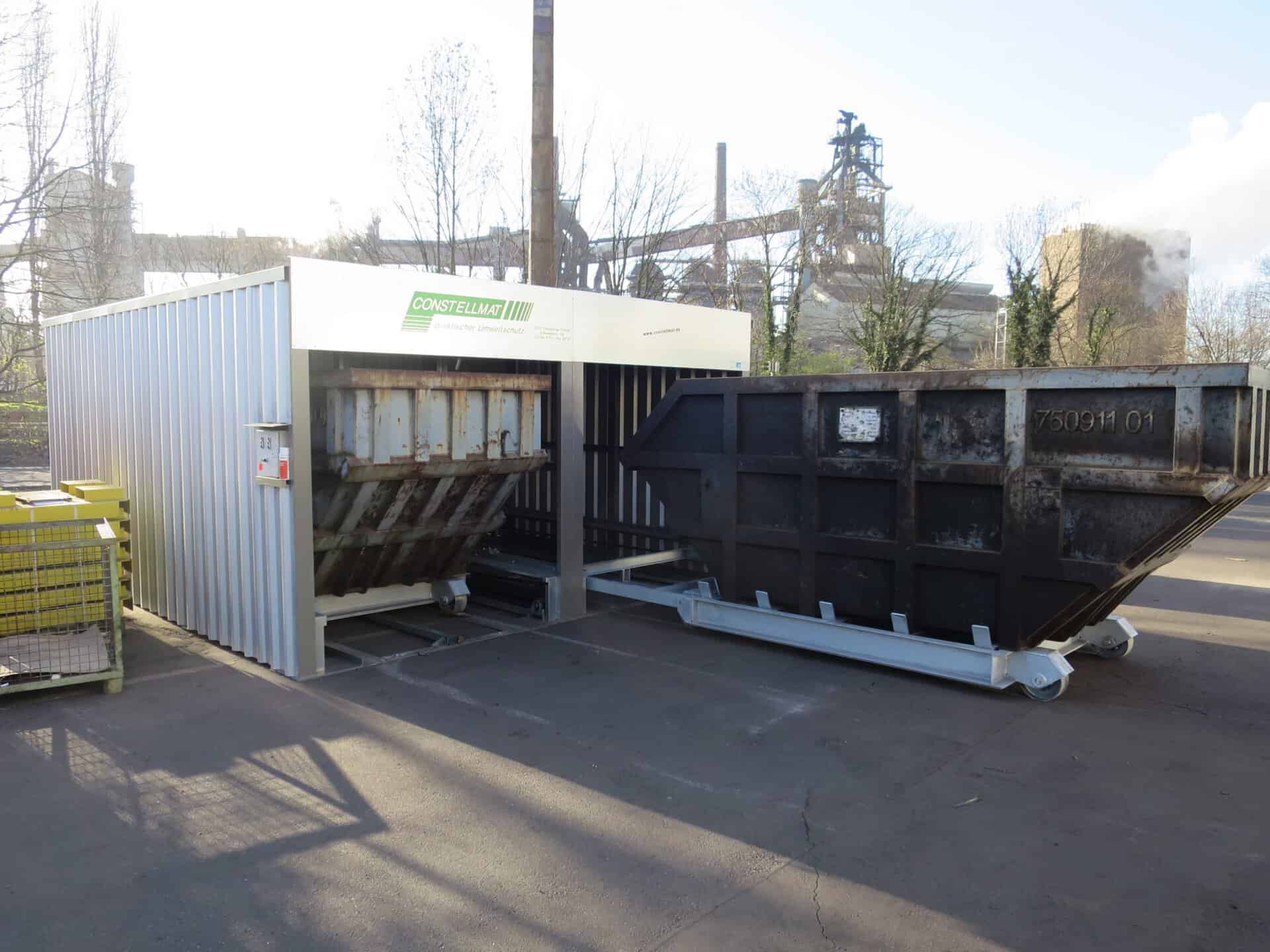

Our mobile CONSTELLMAT container storage area NWF 100 is basically suitable for the storage of all types of container skips. The container is placed by the waste disposal vehicle on the trolley, which is equipped with heavy-duty rollers and is designed as a double collection tray system with an internal container support frame based on our NW 70/140 storage bin system. The container load is taken up directly by the extremely stable frame construction of the trolley.
Covered chain strands on the right and left extend the container-laden trolley evenly by electric/motorized means. The driven axle ensures exact uniformity, which is additionally supported by lateral track plates. By moving the trolley, it is possible to connect an automatic loading system, e.g. an apron conveyor. This ensures that the container is filled evenly and the production process runs smoothly.
Hot-dip galvanized drip tray system
Flexible installation
Durable construction
| Type | Dimensions | Volume | Capacity | Weight | Load capacity |
|---|---|---|---|---|---|
| NWF 100 | 5.2 x 2.4 x 0.30 m | 735 l | 12 m³ | 2000 kg | 25 t |
| 2NWF 100 | 5.2 x 4.8 x 0.30 m | 2x 735 l | 2x 12 m³ | 3600 kg | 2x 25 t |
| 3NWF 100 | 5.2 x 7.2 x 0.30 m | 3x 735 l | 3x 12 m³ | 5200 kg | 3x 25 t |
| 4NWF 100 | 5.2 x 9.6 x 0.30 m | 4x 735 l | 4x 2 m³ | 6800 kg | 4x 25 t |

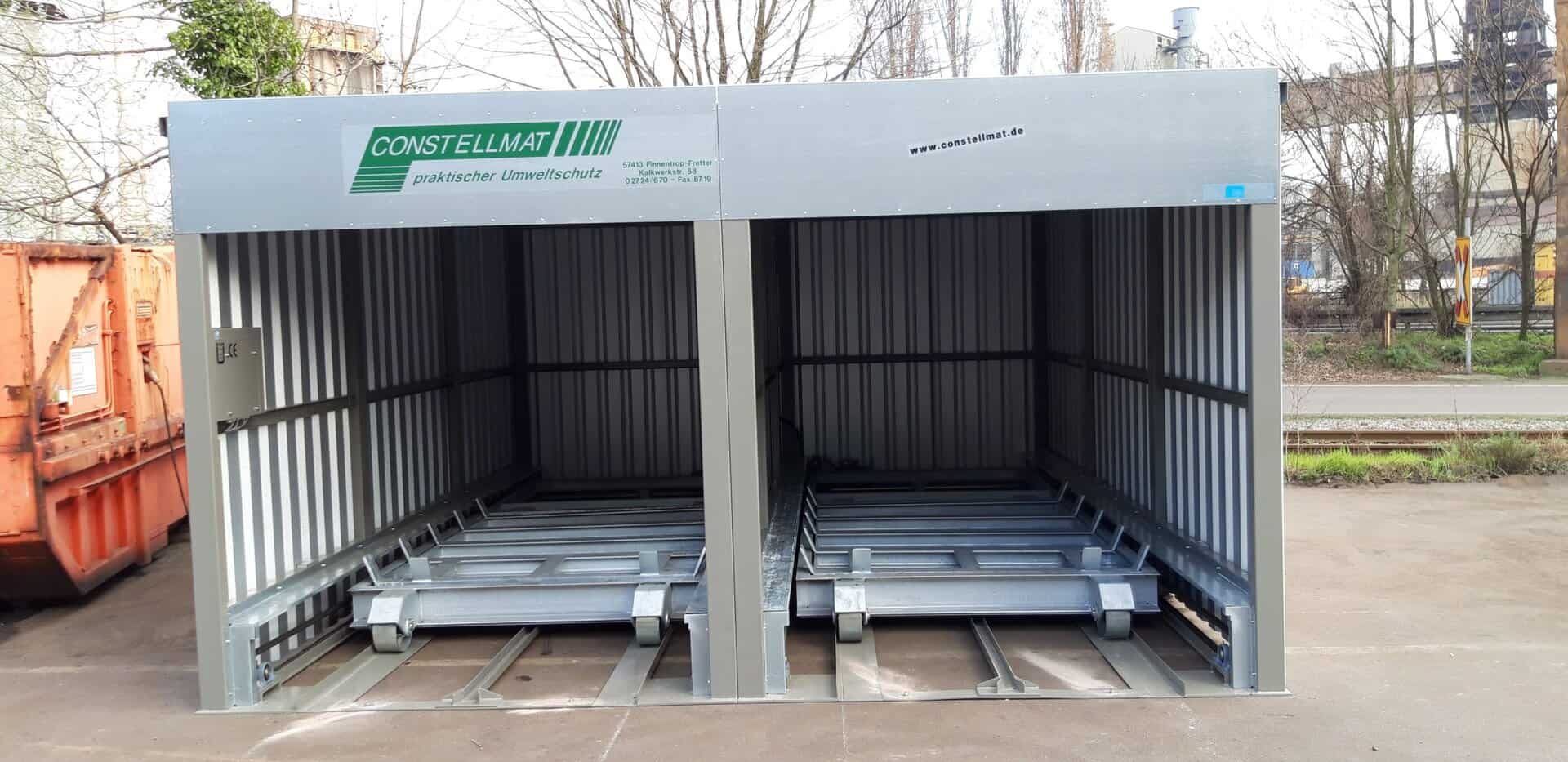

NC 4D series
The CONSTELLMAT NC 4D 25 HS container storage area offers space for four skip containers with a volume of up to 2.5 m³ as well as additional storage options for IBAGs or drums. With a double slide-in tray system and a motorized lifting, swiveling hood roof, this storage area offers maximum protection and flexibility. The robust, welded machine construction with a shared roof ensures a long service life and is not susceptible to faults, while the mobility of the system makes it versatile and efficient to use.
Efficient use of space
Highest safety standards
Durable construction
| Type | Dimensions | Volume | Capacity | Weight | Load capacity |
|---|---|---|---|---|---|
| NC 4D 25 HS | 2.6 x 6 x 1.90 m | 465 – 930 l | 4 x 2.5 m³ | 2600 kg | 4 x 12 t |
